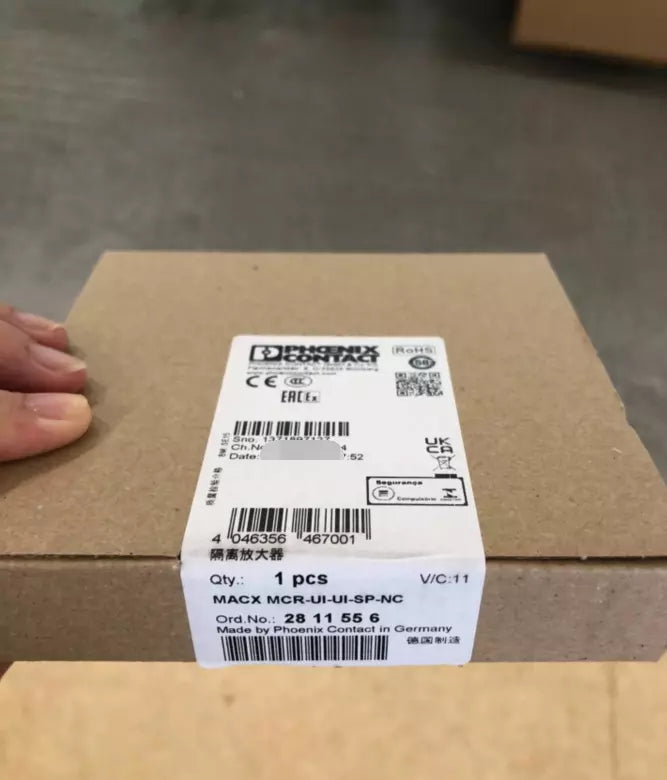

1 Pc New Macx Mcr-Ui-Ui-Sp-Nc 2811556 Module by DHL or Fedex#B6655 Cl Supplier
1 Pc New Macx Mcr-Ui-Ui-Sp-Nc 2811556 Module by DHL or Fedex#B6655 Cl Supplier
SKU:Mcr-Ui-Ui-Sp-Nc
Precio habitual
$553.50 USD
Precio habitual
Precio de oferta
$553.50 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
10 en existencias
No se pudo cargar la disponibilidad de retiro
| Delivery: |  |
| Expedited, Freight, and International shipping available. | |
| Payment: |  |
| Visa, MasterCard, American Express, PayPal, more options | |
| Delivery: | We sell industrial automation parts backed by our 1-year Warranty. |
| Repairs: | Repair and exchange services for all existing automation products. |
| Reseller: | Drop shipping, blind shipping, and account shipping with no extra fees. |
| Parameter | Details |
|---|---|
| Output signal voltage | 0 V ... 2.5 V, 0 V ... 5 V, 0 V ... 10 V |
| Output signal current | 0 mA ... 5 mA, 0 mA ... 10 mA, 0 mA ... 20 mA (Configurable via DIP switches) |
| Ripple | < 10 mVrms |
| Load/output voltage | ≥ 1 kΩ (for 10 V output) |
| Load/output current | ≤ 600 Ω (for 20 mA; active) |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section (rigid) | 0.2 mm² ... 2.5 mm² |
| Conductor cross section (flexible) | 0.2 mm² ... 2.5 mm² |
| Ex data (EPL) | Gc (Div. 2) |
| Width | 12.5 mm |
| Height | 107.9 mm |
| Depth | 113.7 mm |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude range | ≤ 2000 m (up to 3000 m with reduced operating temperature) |
| Protection class | IP20 |
| Material (Housing) | PA 6.6-FR |
| Approvals | CE, ATEX II 3 G Ex ec IIC T4 Gc, UKCA Ex nA IIC T4 Gc, UL 61010 Listed (Class I, Div. 2, T6) |
| EMC Conformance | EN 61000-6-2, EN 61000-6-4 |
| Safety Integrity Level (SIL) | Identification 2 |
* Above datas only for reference, subject to the actual design!
