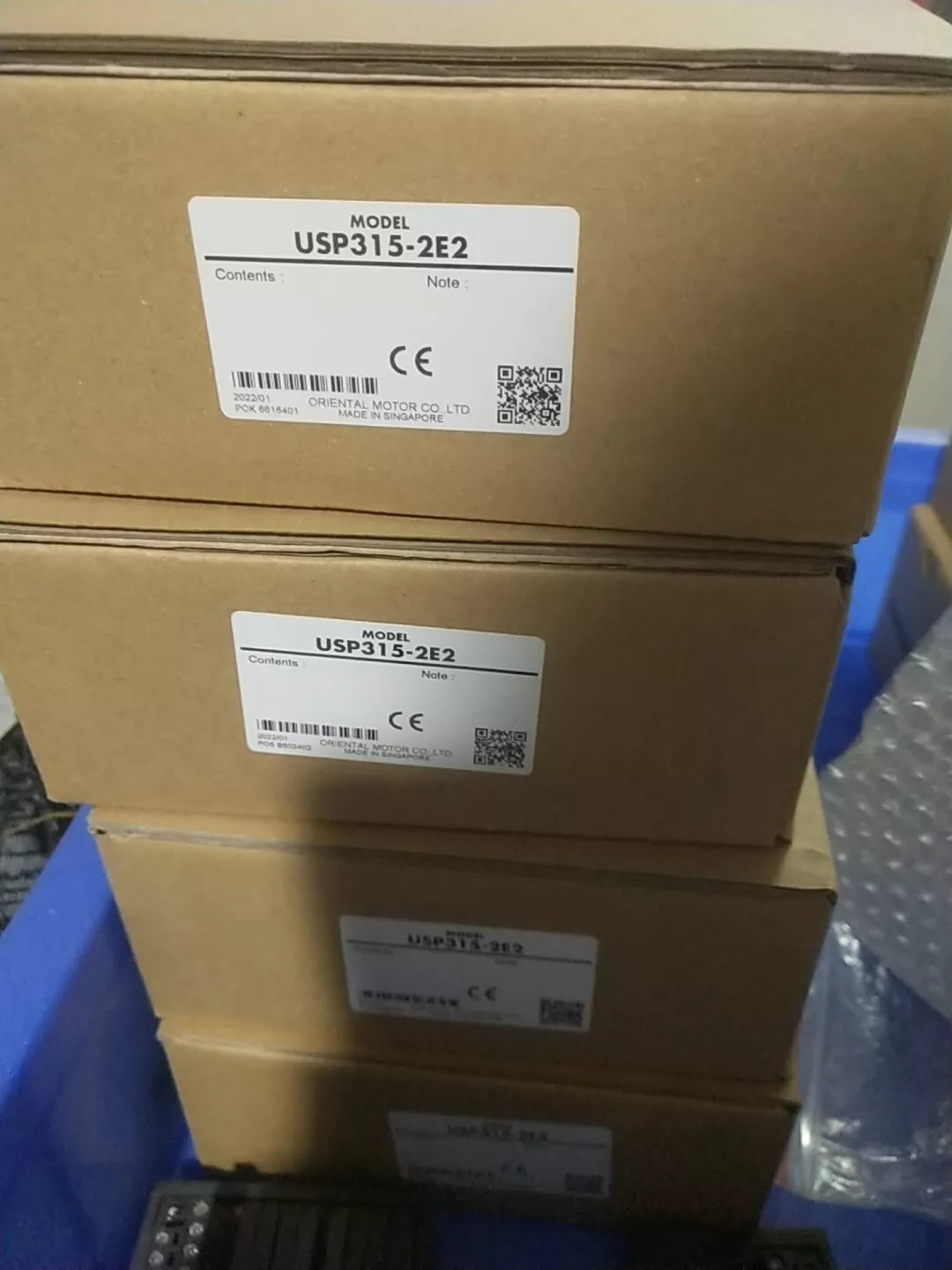

1 Pc New Governor Usp315-2E2 by DHL or Fedex#B691y Cl Supplier
1 Pc New Governor Usp315-2E2 by DHL or Fedex#B691y Cl Supplier
SKU(재고 관리 코드):Usp315-2E2
정가
$539.10 USD
정가
할인가
$539.10 USD
단가
단위
배송료는 결제 시 계산됩니다.
재고 3개
픽업 사용 가능 여부를 로드할 수 없습니다.
| Delivery: |  |
| Expedited, Freight, and International shipping available. | |
| Payment: |  |
| Visa, MasterCard, American Express, PayPal, more options | |
| Delivery: | We sell industrial automation parts backed by our 1-year Warranty. |
| Repairs: | Repair and exchange services for all existing automation products. |
| Reseller: | Drop shipping, blind shipping, and account shipping with no extra fees. |
| Specification | Details |
|---|---|
| Product Line | Oriental Motor® |
| Motor Type | AC Motor |
| Frame Size | 70 mm (2.76 in) |
| Output Power | 15 W (1/50 HP) |
| Power Supply | Single-Phase 220/230 VAC |
| Frequency | 60 Hz / 50 Hz |
| Current | 0.18 A (220 VAC, 60 Hz) / 0.21 A (220/230 VAC, 50 Hz) |
| Shaft/Gear Type | Round Shaft (No Gearhead) |
| Output Shaft Diameter | 6 mm |
| Permissible Torque | 1.11 lb-in (0.105 N·m) [60 Hz], 0.125 N·m [50 Hz] |
| Variable Speed Range | 90 ~ 1400 rpm (50 Hz), 90 ~ 1600 rpm (60 Hz) |
| Permissible Overhung Load | 9 lb (0.39 in. from Shaft End), 13.5 lb (0.79 in.) |
| Permissible Thrust Load | Minimized thrust load, ≤ half motor mass if unavoidable |
| Max. Extension Length | 4.75 m |
| Components | USM315-002W2 (Motor), USP315-2E2 (Control Unit) |
| RoHS Compliant | Yes |
| Safety Standards | UL, CSA, CCC, EN, CE |
| CE Marking | Low Voltage Directives, EMC Directive |
| Insulation Resistance | 100 MΩ or more (Control Unit and Motor) |
| Dielectric Strength | Not fully specified in the available information |
* Above datas only for reference, subject to the actual design!
